1804A

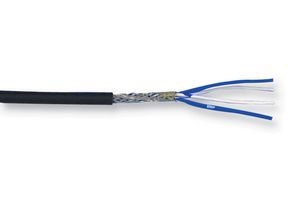

The 1804A is a 4-conductor shielded Star Quad Cable with 28AWG stranded (19 x 40) high-conductivity silver-plated copper alloy (SPCA) conductors, polypropylene insulation, tinned copper braid shield (80% coverage) and black PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.

• CPR: Not Yet Qualified
• Low impedance
• 40Ω Nominal characteristic impedance
• 40pF/ft Conductor to shield nominal capacitance
• 66% Nominal velocity of propagation
• 65Ω/1000ft at 20°C Nominal conductor DC resistance
• 15Ω/1000ft at 20°C Nominal outer shield DC resistance

Ứng Dụng

Industrial

Ghi chú

Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
