9907

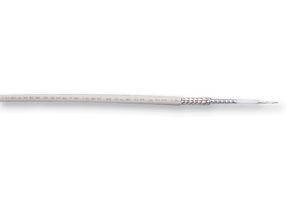

The 9907 is a thinnet 10Base2 Ethernet Coaxial Cable with 20AWG stranded (19 x 32) 0.037-inch tinned copper conductor, foam polyethylene insulation, Duobond® II bonded aluminium foil-polyester tape (100% coverage) plus an overall tinned copper braid shield (93% coverage) and grey PVC jacket. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.

• CPR: Not Yet Qualified
• 50Ω Nominal characteristic impedance
• 25.4pF/ft Conductor to shield nominal capacitance
• 80% Nominal velocity of propagation
• 8.8Ω/1000ft at 20°C Nominal conductor DC resistance
• 5.8Ω/1000ft at 20°C Nominal outer shield DC resistance
• UL1685 Flame tested

Ứng Dụng

Industrial
