Thông Tin Sản Phẩm

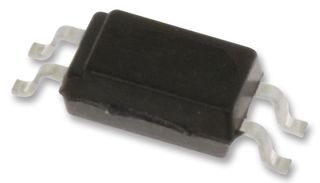

Nhà Sản XuấtPANASONIC
Mã Số Linh Kiện Nhà Sản XuấtAPV2111V
Mã Đặt Hàng2095709
Phạm vi sản phẩmAPV
Bảng Dữ Liệu Kỹ Thuật
Contact FormSPST-NO (1 Form A)
Load Type-
Load Voltage Max8.2V
Load Current8µA
MOSFET Relay Package StyleSSOP-4
Relay MountingSurface Mount
Relay TerminalsGull Wing
On State Resistance Max-
Isolation Voltage1.5kV
I/O Capacitance Typ0.8pF
Off State Leakage Current Max-
Product RangeAPV
SVHCNo SVHC (10-Jun-2022)
Tổng Quan Sản Phẩm
The APV2111V is a SMD MOSFET Relay for electronic circuits power supply (Vcc). The photovoltaic MOSFET driver with 0.1ms typical release time. The MOSFET can be turned off quickly in an urgent situation. With a built-in control circuit, an external resistor is not needed. This contributes to making substrates more compact.
- High-speed switching
- Space saving
- High insulation
- 8μA Typical short circuit current
- -40 to 85°C Operating temperature range
Ứng Dụng
Industrial, Consumer Electronics
Thông số kỹ thuật
Contact Form
SPST-NO (1 Form A)
Load Voltage Max
8.2V
MOSFET Relay Package Style
SSOP-4
Relay Terminals
Gull Wing
Isolation Voltage
1.5kV
Off State Leakage Current Max
-
SVHC
No SVHC (10-Jun-2022)
Load Type
-
Load Current
8µA
Relay Mounting
Surface Mount
On State Resistance Max
-
I/O Capacitance Typ
0.8pF
Product Range
APV
Tài Liệu Kỹ Thuật (3)
Pháp Chế và Môi Trường
Nước xuất xứ:
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Japan
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiệnNước xuất xứ:Japan
Quốc gia nơi quy trình sản xuất quan trọng cuối cùng được thực hiện
Số Thuế Quan:85412900
US ECCN:EAR99
EU ECCN:NLR
Tuân thủ tiêu chuẩn RoHS:Có
RoHS
Tuân thủ tiêu chuẩn RoHS Phthalates:Có
RoHS
SVHC:No SVHC (10-Jun-2022)
Tải xuống Chứng Nhận Chất Lượng Sản Phẩm
Chứng Nhận Chất Lượng Sản Phẩm
Trọng lượng (kg):.000281
